Acoustic Baffle Light – PC Diffuser Lens
This Acoustic Baffle Light – PC Diffuser Lens is engineered to combine architectural lighting with advanced acoustic performance, creating a quieter and visually comfortable interior environment. Featuring a slim linear profile with integrated acoustic PET panels, it helps reduce echo and ambient noise while delivering soft, uniform, and glare-free illumination suitable for modern commercial spaces. Multiple size configurations, customizable lengths, and a variety of panel color options are available to meet different architectural design requirements.
• Integrated acoustic and lighting solution for modern interiors
• Slim linear baffle design with PC diffuser lens for soft, even lighting
• Effective sound absorption with high-performance PET acoustic panels
• Uniform, glare-free illumination for visual comfort
• Available in multiple baffle heights and customizable lengths
• Made with recycled PET materials for sustainable design

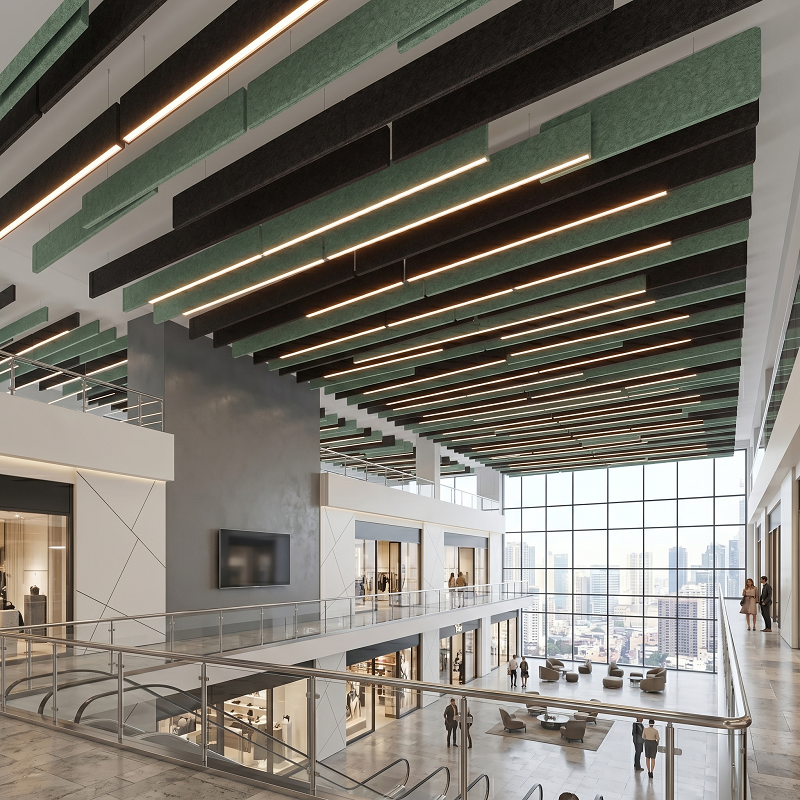

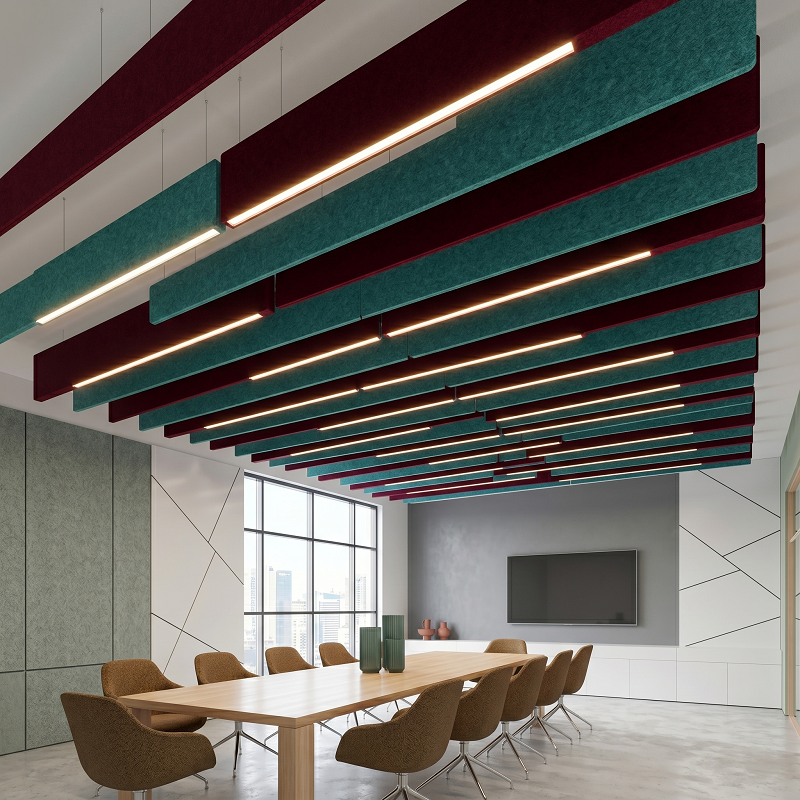

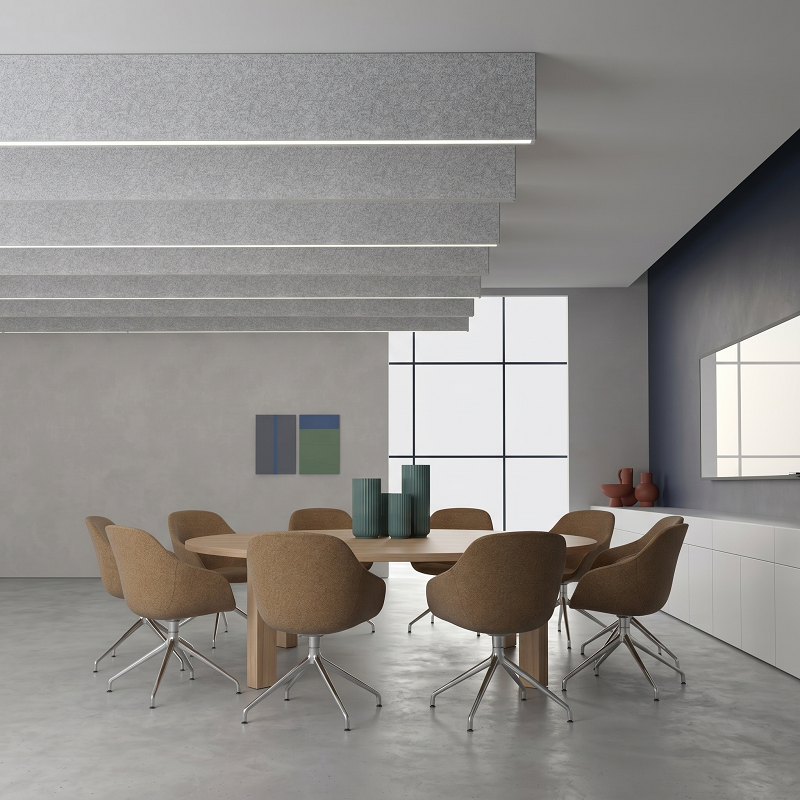

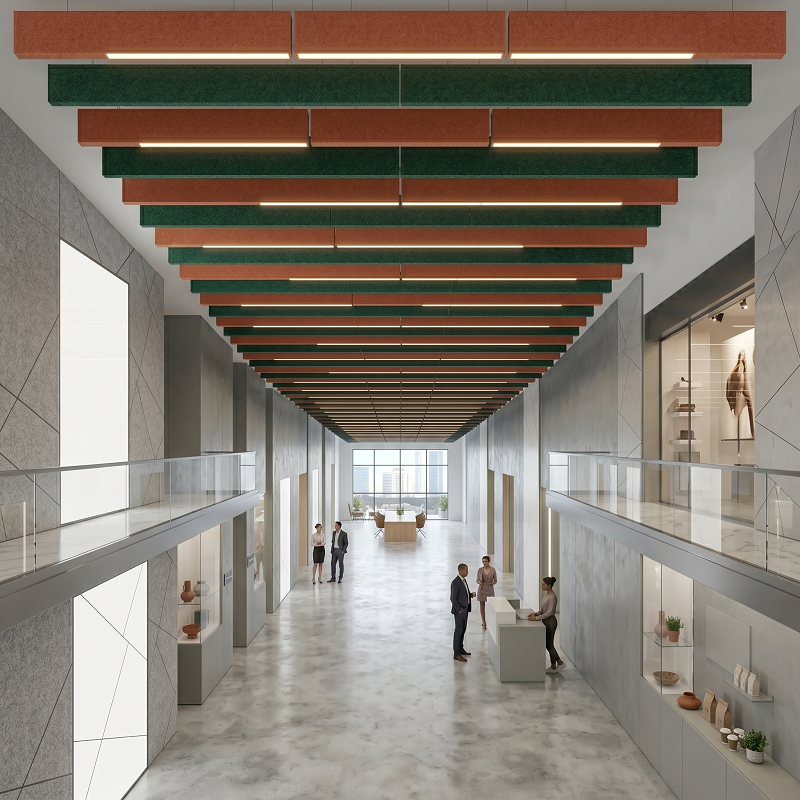

• Suitable for offices, meeting rooms, schools, libraries, and public spaces
• Multiple panel colors and finish options for architectural flexibility
Key Features of the Acoustic Linear LED Luminaire
Narrow 1.5″ Aperture Linear Direct Acoustic LED Luminaire
• Available in customizable lengths from 3′ to 208′ in 1″ increments, with 8″, 12″, and 16″ nominal baffle heights. Offered in straight runs or configurable patterns with 90° corners.
• Frosted acrylic lens combined with low-glare louver-and-lens optics delivers smooth, uninterrupted illumination without visible pixels or shadows.
• Optimized LED positioning and advanced optical materials provide an ideal balance of lighting performance and visual comfort.
• High-performance PET acoustic panels effectively reduce echo and ambient noise in interior environments.
• Eco-friendly acoustic materials made with recycled content support sustainable architectural applications.
• Ideal for offices, meeting rooms, schools, libraries, and modern commercial interiors.
• Multiple panel colors and architectural finish options available for customized interior designs.
Structure & Pattern Design
The acoustic baffle light system features a flexible modular design, supporting both straight and geometric ceiling layouts.
It can be installed as a single linear run or combined with 90° corner connectors to create different lighting patterns:
• Straight Run: Continuous linear installation for standard ceilings
• L Pattern: Two connected segments (A’ × B’) using 90° corner joints
• U Pattern: Three-sided layout (A’ × B’ × C’) for semi-enclosed spaces
• Rectangular Pattern: Four-sided enclosed design (A’ × B’ × R) for large ceiling areas
• Corner Detail: 12″ × 12″ precision corner module with angled lens for seamless light continuity
Item | Specification |
|---|---|
Content | Housing material is 100% polyester containing up to 50% of recycled plasticbottles (PET felt) and is moisture resistant.Acoustic material colors are subject to resshubjeg to change withoutnotice. Printed finishes such as The Naturals and Cosmic may leave the basematerial color visible on edges, depending on the product. Consult factory formore information. Lead times may vary depending on color. |
Cleaning and Care | Remove dust and debris with a clean, soft, lint-free cloth or vacuum |
PET Thickness | 9mm |
Surface BurningCharacteristics | ASTM E84 Class A/ CAN ULC S102 Flame Spread: 0, Smoke Development Index: 300 |
Colorfastness | AATCC 16A Option 3 Class 4 minimum at 40 hours |
Acoustic Material
The acoustic body is crafted from high-performance PET felt, masterfully engineered to combine professional architectural sound absorption with eco-friendly sustainability.
Material Composition: 100% polyester fiber containing up to 50% recycled post-consumer PET plastic bottles, ideal for green building code compliance.
Surface Finish: Resilient and durable acoustic felt with advanced moisture resistance, ensuring long-term shape stability in humid environments.
Thickness & Acoustic Layer: 9mm precision-engineered thickness, fully optimized as an exceptional sound absorption layer for maximum echo reduction.
Maintenance & Cleaning: Low-maintenance care designed for easy, everyday cleaning with a simple dry, lint-free cloth or standard commercial vacuum.
Fire Safety & Colorfastness: ASTM E84 Class A / CAN ULC S102 certified (Flame Spread Index: 0 | Smoke Developed Index: 300). Tested to AATCC 16A Option 3 ensuring high colorfastness and fade resistance over 40 hours.
LED System & Optical Performance
The integrated lighting system is designed to deliver uniform illumination and high visual comfort.
• Color Temperature: 2700K / 3000K / 3500K / 4000K
• Color Rendering Index: 80 CRI or optional 90 CRI
• Color Consistency: ≤ 3 SDCM (MacAdam ellipse) for consistent light appearance
• Lens System: 0.05″ frosted extruded acrylic lens for smooth, dot-free light output
• Optical Design: LED positioning optimized for glare control and uniform diffusion
• Light Quality: Continuous illumination with no visible pixelation or shadowing
Electrical System
• Input Voltage: 120–277V universal voltage
• Dimming Options: 0–10V (10% or 1%), Lutron, DALI compatible systems
• Power Factor: Pf > 0.9 for stable energy performance
• Emergency Option: 10W emergency battery backup, 90-minute runtime
• Maximum Mounting Height: up to 16.83 ft installation height capability
Lifetime Performance
• L70 Lifetime: > 61,000 hours
• Theoretical L70 Calculation: up to 470,000 hours
• L90 Lifetime: > 61,000 hours (theoretical up to 115,000 hours)
The system is designed for long-term commercial and institutional applications requiring low maintenance and high reliability.
Configuration Overview
The system is fully modular and configurable based on project requirements:
• Series: Direct acoustic LED luminaire system
• Shielding Options: Asymmetric / Batwing / Regress lens for glare control
• Housing Heights: 8″ / 12″ / 16″
• Lumen Output: 100–500 lm/ft adjustable brightness levels
• CCT Options: 2700K–4000K with high CRI options
• Control Systems: 0–10V / Lutron / DALI compatibility
• Mounting: Suspension or direct grid installation
• Pattern Options: Straight / L / U / Rectangular configurations
• Length: Customizable from 3 ft to 208 ft in 1-inch increments
Item | Specification |
|---|---|
Product Type | Acoustic Linear LED Baffle Light |
Dimensions (L × H) | 1200×300mm / 1200×400mm / 1200×600mm |
Thickness | 9mm / 12mm / 24mm |
Customization Range | Max Length: 2400mm / Max Height: 600mm / Bespoke Shapes |
Mounting | Suspension / Grid / Strut |
Acoustic Baffle Light – Louver & Lens
This Acoustic Baffle Light – PC Diffuser Lens is designed to combine modern architectural lighting with high-performance acoustic functionality, helping create quieter, softer, and more visually comfortable interior environments. Featuring a slim linear profile with integrated acoustic PET panels and a smooth PC diffuser lens, the fixture delivers uniform LED illumination while effectively reducing reverberation and ambient noise in open commercial spaces. Multiple size configurations, customizable lengths, and various acoustic panel color options are available to meet different architectural and interior design requirements.
• Integrated acoustic and architectural lighting solution
• Smooth PC diffuser lens for soft and uniform illumination
• Slim linear baffle design for modern ceiling aesthetics
• Effective sound absorption for improved acoustic comfort
• Available in multiple baffle heights and customizable lengths
• Durable PET acoustic panels made from recycled materials
• Comfortable low-glare lighting performance for daily environments
• Ideal for offices, meeting rooms, schools, libraries, and public interiors
• Multiple panel colors and finish options for project customization
Size & Installation
Item | Specification |
|---|---|
Length | L1208mm |
Power | 21W / 30W |
Lumen | 1701lm / 1890lm / 1947lm / 2430lm / 2700lm / 2781lm |
CRI | 80+ / 90+ |
CCT | Suspension / Grid / Strut |
Dimming | On-Off / 0-10V / DALI |
Customization Range | Max Length: 2781mm / Max Height: 600mm / Bespoke Shapes |
Product Introduction
Acoustic Baffle Light – PC Diffuser Lens is designed to improve both lighting comfort and acoustic performance in modern architectural spaces. Combining linear LED lighting with suspended acoustic baffle panels, the fixture helps reduce reverberation while delivering smooth and uniform illumination.
The integrated PC diffuser lens creates soft visual comfort with reduced glare, making it ideal for offices, meeting rooms, educational facilities, libraries, and open commercial interiors.
Manufactured with recyclable PET acoustic material, the system supports sustainable interior design while maintaining excellent durability and fire safety performance. Multiple colors, dimensions, and custom configurations are available to match different ceiling concepts and project requirements.
Features
Soft & Uniform PC Diffuser Lighting
The integrated PC diffuser lens delivers smooth and even illumination, reducing harsh brightness and improving overall visual comfort in working environments.
Acoustic Noise Reduction Performance
The acoustic PET baffle structure helps absorb unwanted sound reflections and reduces reverberation in open spaces, improving speech clarity and acoustic comfort.
Modern Linear Architectural Design
Slim linear profiles combined with suspended acoustic panels create a clean and contemporary ceiling appearance suitable for modern commercial interiors.
Sustainable PET Acoustic Material
Manufactured from recyclable and low-odor PET materials, the product supports environmentally conscious architectural projects.
Class A Fire Retardant
The acoustic materials meet Class A fire safety standards, making the fixture suitable for commercial and public applications.
Flexible Customization Options
Available in multiple sizes, colors, suspension methods, and continuous run configurations to meet different project requirements.
Finish
The Acoustic Blade Light is offering various color up to 25 options, 10 colors are in stock for quick shipping.
Other 15 colors for option.
Item | Specification |
|---|---|
Light Cover | Pc/Lens |
Beam Angle | 90°/120°/35×75°/50×50°/Dimond50°*50° |
UGR | <19 20 |
Power (watts) | 20-100 watts |
Efficiency(lumen/watt) | 90/100/120/140 |
RA/CRI | 80/90/95 |
CCT(Kevin) | 3000/4000/5000/6000K |
Dim | on&off/0-10v/DALI |
Driver | Lifud |
SDCM | ≤ 3 SDCM |
Voltage | 120-277V |
Power Factor | > 0.9 |
Emergency | 10W / 90 min backup (optional) |
Fire Rating | ASTM E84 Class A/ CAN ULC S102 |
How to produce the Acoustic Baffle Light
Aluminum Profile Extrusion & Cutting
Surface Finishing Treatment
LED Module Assembly
Optical System Installation
Acoustic PET Panel Processing
Acoustic & Lighting Integration
Electrical & Optical Testing
Acoustic Performance Inspection
Aging Test
Final Assembly & Packaging
Acoustic Board Option
Acoustic Performance & Felt Material
Our acoustic lighting fixtures use high-density polyester felt panels available in multiple thicknesses to support different structures and forming methods.
9 mm felt is typically used for thermoformed acoustic panels, as it offers the flexibility required for mold-based production and curved or wrapped designs.
Standard acoustic lighting panels are available in 9 mm, 12 mm, 18 mm, 24 mm, and 27 mm, allowing designers to balance sound absorption, visual depth, and structural stability.
In practical applications, fan-shaped or segmented circular panels usually use 18 mm or 24 mm, while fully wrapped circular acoustic lights commonly adopt 9 mm or 12 mm.
All felt materials are environmentally friendly, fire-resistant, and engineered for effective sound absorption, making them suitable for acoustic pendant lights, acoustic ceiling lighting, and OEM / ODM architectural projects.
What is Acoustics?
Acoustic products are made from 100% polyethylene terephthalate(PET), with 50% post consumer recycled material.
PET is a green product manufactured free of added chemicals,binders, adhesives and dyes.
The product is very adaptable, it can be cut, notched or trimmed for installation purpose.
Nearly every environment interacts with sound, PET can achieve a triple purpose functionally acoustic in nature, enhanced design of any space and environmental consciousness.
Acoustic Lighting Features
High Sound Absorption Performance in NRC = 0.7
Excellent illumination performance
Up to CRI>95 & R9>90
100% recyclable and odorless material
Class A/HB Fire retardant
Various customized design in 4x8ft/1.22×2.44m acoustic panels
FAQ
What is an acoustic baffle light?
An acoustic baffle light is a ceiling system that combines sound-absorbing panels with integrated LED lighting, improving both acoustics and illumination in one solution.
How does an acoustic baffle system reduce noise?
The vertical panels absorb sound waves from multiple directions, reducing echo and reverberation, especially in large or open spaces.
Where can acoustic baffle lights be used?
They are widely used in offices, restaurants, retail stores, airports, conference rooms, and educational environments.
What are the benefits of acoustic baffles compared to ceiling tiles?
Acoustic baffles provide better sound absorption in high ceilings and open spaces because they capture sound from multiple angles, unlike flat ceiling panels.
Can the lighting be customized?
Yes, the LED lighting can be customized in terms of length, brightness, color temperature, and control options.
Are acoustic baffle lights suitable for offices?

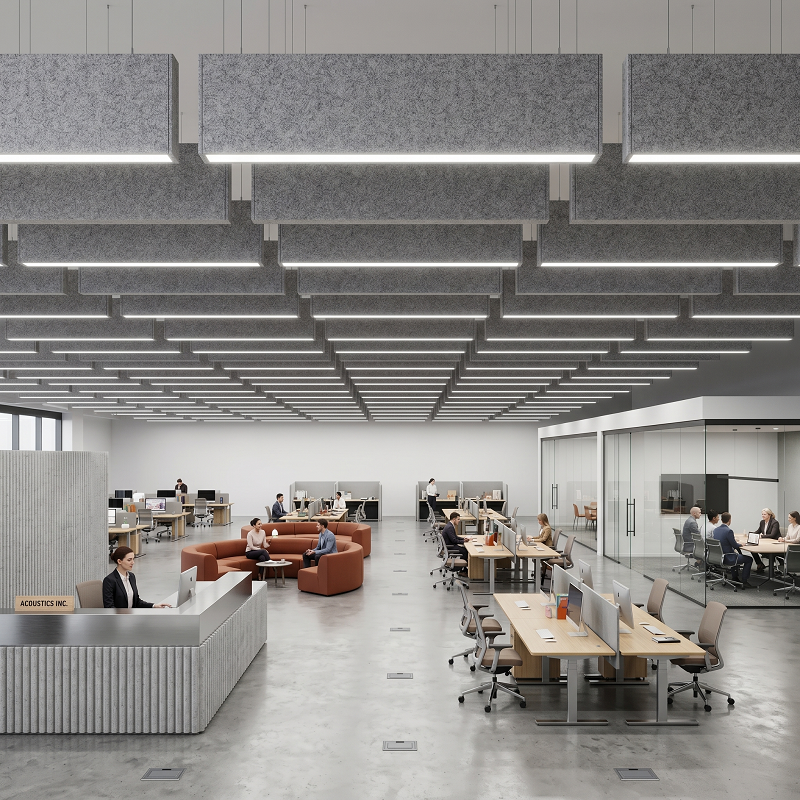

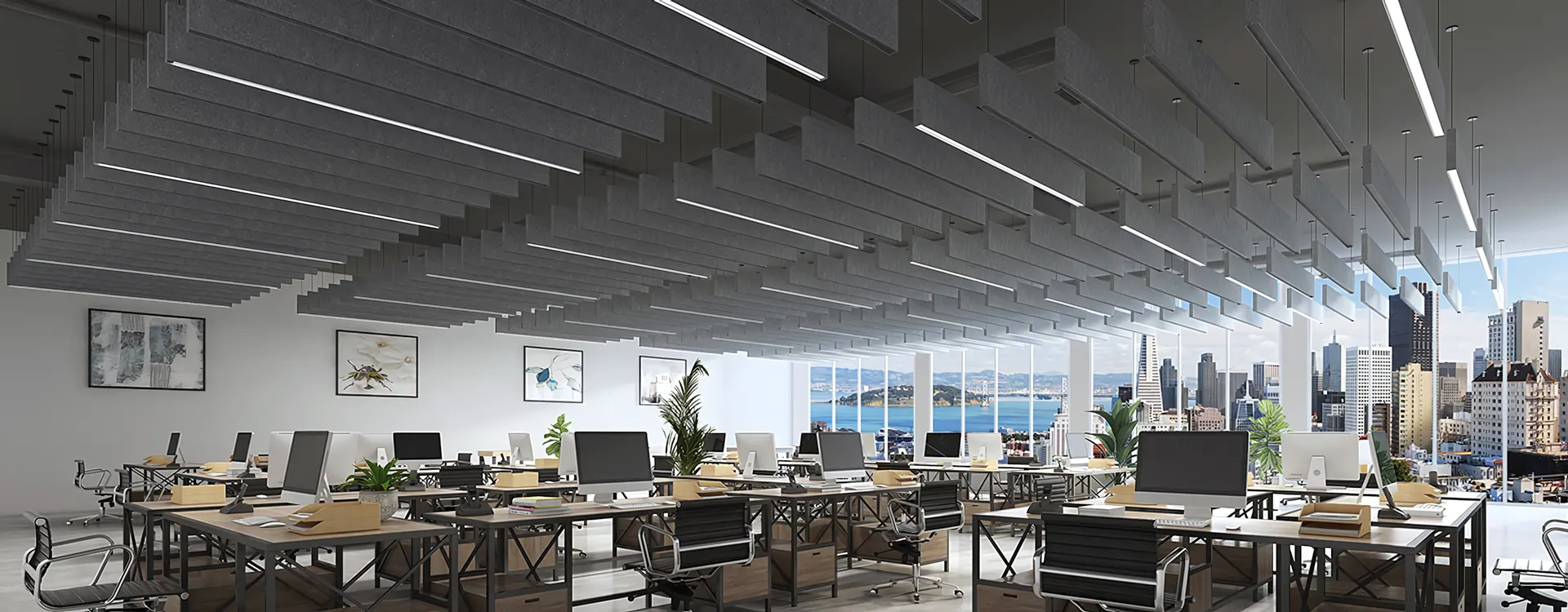

Yes, they are ideal for open-plan offices as they reduce noise distractions and improve speech clarity.
What materials are used in acoustic baffle panels?
They are typically made from high-density PET felt, which is durable, lightweight, and often made from recycled materials.
Are acoustic baffle lights energy-efficient?
Yes, the integrated LED lighting system is highly energy-efficient and designed for long-term use with low power consumption.
Can I customize the size and spacing of the baffles?
Yes, the system is modular and allows flexible configuration, including different lengths, spacing, and layouts.
Is installation complicated?
No, the system is designed for straightforward ceiling suspension and can be installed efficiently by professionals.
Do acoustic baffle lights require maintenance?
Minimal maintenance is required. Occasional cleaning and inspection of the lighting components are usually sufficient.
Are they suitable for high ceilings?
Yes, acoustic baffles perform especially well in high-ceiling environments where traditional acoustic panels are less effective.
